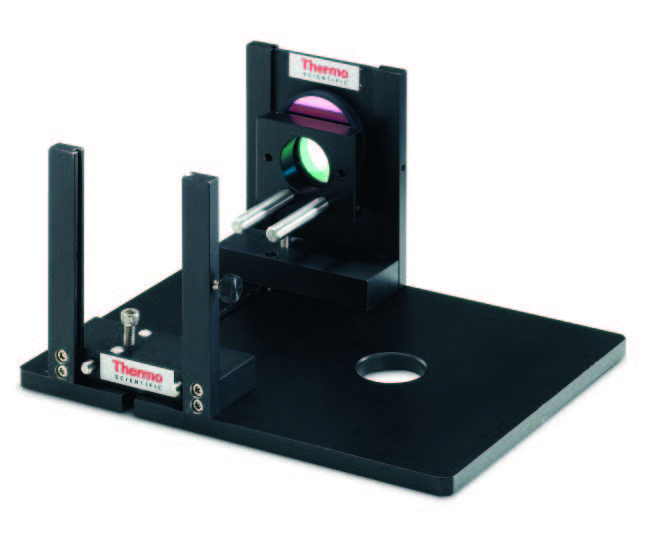

Sample Slide Holder and Baseplate-Det

The Thermo Scientific Fixed Angle Specular Reflectance Accessories offer high performance and accuracy for the measurement of glossy or mirrored surfaces at fixed angles.

(주)비케이인스트루먼트는 Thermo Fisher Scientific의 UV-Vis 공식 대리점으로

Thermo Fisher 미국본사의 자격을 보유한 전문 엔지니어의 Service와 Training을 제공합니다.

Description

The Thermo Scientific Fixed AngleSpecular Reflectance Accessoriesoffer high performance andaccuracy for the measurement ofglossy or mirrored surfaces atfixed angles.

Thermo Scientific 고정 각도 반사율 액세서리는 고정 각도에서 광택 또는 거울 표면을 측정할 때 높은 성능과 정확도를 제공합니다.

· 카달로그 번호:  222-217200

· 설명: Thermo Scientific Fixed Angle Specular Reflectance Accessories

Specifications

Specific Angles for Special Applications

· Mirrors operating at 45° on laser tables are required to direct the beam through experiments in research applications.

· Hot mirrors and cold mirrors have different cut-on and cut-off wavelengths depending on the angle of incidence. How does a shift from 30° to 45° affect your product?

· For chemists and surface scientists, grazing angle (85°) measurements† give the longest possible path through adsorbed or chemically fixed thin films on a surface.

· Film thickness measurements can be performed at any known angle.

Slide-in Mounting in the Solid Sample Holder

· SRAs with fixed angles of 15°, 20°, 30°, 45° and 60° fit in the Solid Sample Holder and are quickly and easily interchanged for measurements at different angles. An optional second slide mount allows you to condition the light by placing a filter or polarizer before or after your sample. The Thermo Scientific line of fixed angle SRAs gives you access to the fixed angles you need with less storage space and lower initial cost.



Feature Packed Software for Control and Calculation

· VISIONpro™ or Thermo Scientific INSIGHT software give the user complete control of the instrument for alignment and method development. Optional VISIONlite™ MaterialsCalc software† presents a simplified scanning interface and access to a suite of calculations for materials applications.
