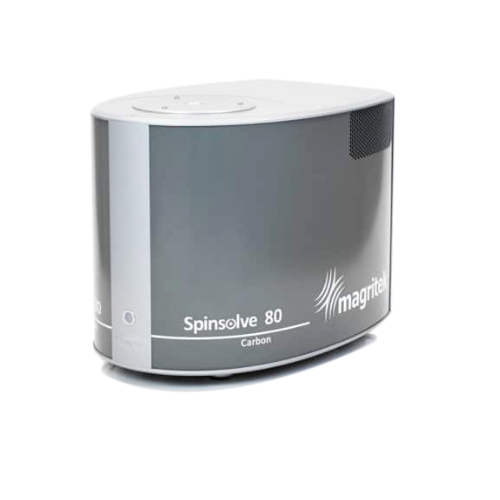

Spinsolve 80 MHz benchtop NMR

판매가격 견적문의
카탈로그 NO. 견적문의
제조사/원산지 magritek /
제품사양 정보

카탈로그 다운로드

Spinsolve-80-MHz.pdf
다운로드

Order Information

Features of Spinsolve 80 MHz


  • 1H frequency: 80 MHz
  • 1H and 19F on all systems + X nuclei for dual channel systems
  • Resolution:

Spinsolve 80

  • Linewidth at 50% <0.4 Hz
  • Linewidth at 0.55% <15 Hz
  • Linewidth at 0.11% <30 Hz

Spinsolve 80 Ultra:

  • Linewidth at 50% <0.2 Hz
  • Linewidth at 0.55% <10 Hz
  • Linewidth at 0.11% <20 Hz
  • Sensitivity: 280:1 (Single channel for 1% Ethyl Benzene)
  • Sensitivity: 200:1 (Dual channel for 1% Ethyl Benzene)
  • 3D PFG gradients optimized for gradient-enhanced methods
  • Optional PFG gradients for diffusion spectroscopy  (>0.5 T/m)
  • No cryogens
  • External Hardware Lock with no need for deuterated solvents
  • Unparalleled stability
  • Suitable for on-line reaction monitoring
  • Easy to operate
  • Compatible with automatic sample changer
  • Dimensions: 58 x 43 x 40 cm (23” x 17” x 16”)
  • Weight: 72.5 kg (160 lb)

Sensitivity measured in a single scan on a 1% ethylbenzene sample dissolved in deuterated chloroform. The signal used for the calculation is the one of the methylene group and the noise is calculated for a signal free region between the aromatic and the methylene signa
