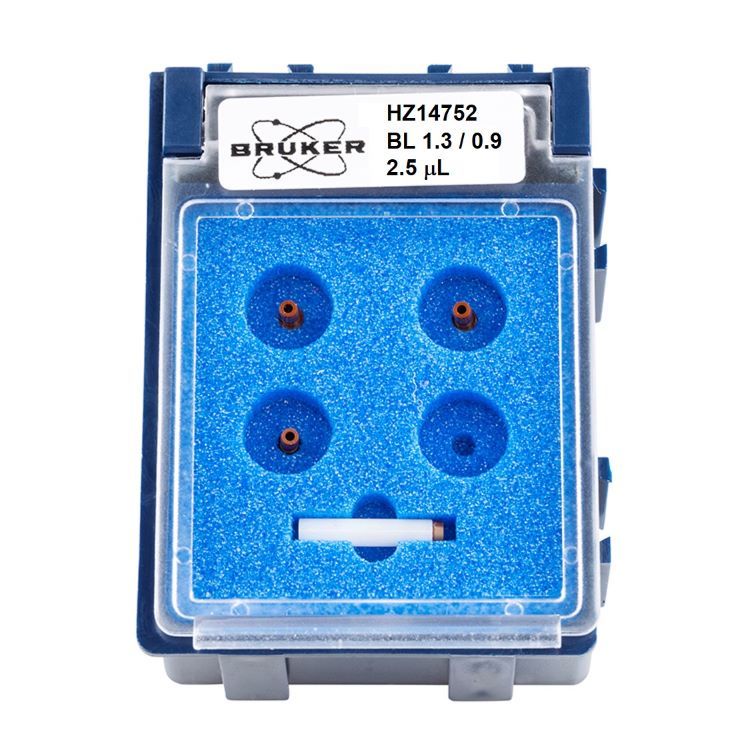

Pack of :
• One 1.3 mm ZrO2 MAS rotor
• Two 1.3 mm SP1 bottom cap (HZ08194)
• Two 1.3 mm SP1 drive caps (HZ14381)

Caps have been individually tested on the corresponding rotor to ensure a perfect fit and prevent sample leaking. Please note that perfect fitting of caps with rotors is not guaranteed when buying those items separately. CortecNet can not be held responsible in case of rotor/cap damage or sample leaking issues for items purchased individually.
Extreme caution is required when removing the caps from the rotors.

Product Specifications:
• Temperature range: -30°C to +70°C
• Max Spinning rate: 67 kHz

Materials:
• Rotor: Zirconia (ZrO2)
• Caps: SP1 (Vespel)

Dimensions:
• O.D.: 1.3mm
• I.D.: 0.9 mm
• Active vol: 2.5 µL
• Depth: 4.7 mm (with caps)
• Total length: 7.7 mm
