Spinner Turbines for Bruker® Spectrometers

판매가격 995,800 원
카탈로그 NO. FAMILY-3636
제조사/원산지 Wilmad-LabGlass /
제품사양 정보

카탈로그 다운로드

SP Wilmad-LabGlass NMR Consumable and Accessories.pdf
다운로드

Order Information

Catalog No. Description 브랜드 단위 소비자가 추가
Catalog No.B-PEEK-3-NS Description3-5 mm Bruker Spinner Turbine,PEEK,3 mm PEEK Fingers 브랜드Wilmad 단위1 EA 소비자가995,800원
Catalog No.B-PEEK-5-NS Description3-5 mm Bruker Spinner Turbine,PEEK,5 mm PEEK Fingers 브랜드Wilmad 단위1 EA 소비자가995,800원

선택한 항목

Catalog No. Description 소비자가
총 합계 금액 0원
구매하기
장바구니
찜하기

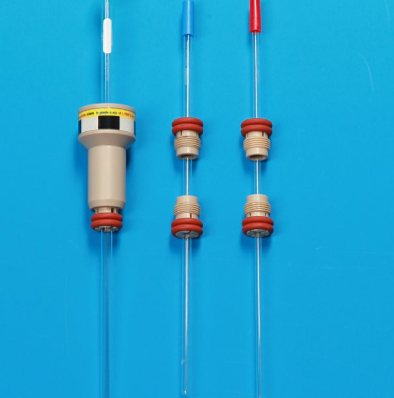

Spinner Turbines for Bruker® Spectrometers

Cost effective compared to the full VT version for sample changers Allows a portion of the VT air to pass straight past the sample inside the spinner turbine therefore reducing VT gradients and micro sonic flutter due to a high VT flow Includes high temperature external O-rings at the top and bottom for long life and a firm grip on the sample at top and bottom. Can also be used for spinning experiments.



B-PEEK-3-NS Specifications

  • Description:3 to 5mm Spinner Turbine, Bruker®, PEEK, VT, -150 to +200° C with 3 mm PEEK exchangeable fingers


B-PEEK-5-NS Specifications

  • Description:3 to 5 mm Spinner Turbine, Bruker®, PEEK, VT, -150 to +200° C with 5 mm PEEK exchangeable fingers


Application Notes

B-PEEK-5-NS Note: PEEK fingers are supplied with the NS style Spinner Turbine. PTFE fingers can be ordered separately. Reminder: Two fingers are required per turbine. **The Mass Multiplier Ring is not included and can be purchased separately – application temperature does not apply.
