Multi-Tube Jet Solvent NMR/EPR Tube Washer/Dryer (2nd Generation)

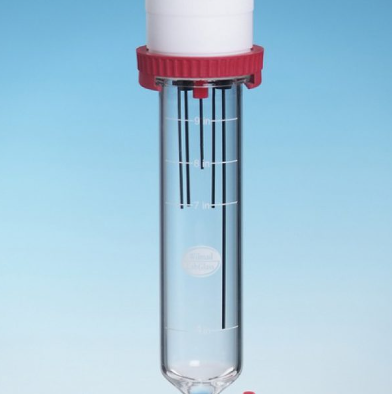

Wilmad’s 2nd generation Multi-Tube Jet Solvent Washer/Dryer is recommended for research labs that routinely clean NMR and EPR tubes; a single unit can accommodate up to 5 tubes (3, 4 and 5 mm OD) at once. When an inverted tube is inserted onto the solvent transfer tubing and the open end is immersed under wash solvent in the solvent cup, a reliable vacuum-tight seal will be formed and generate solvent flow under vacuum. After solvent is fully consumed, air flow will follow to turn the unit into a dryer. Features: 5 PTFE coated stainless steel solvent transfer tubes fit 3, 4 and 5 mm NMR/EPR tubes. PTFE solvent cup and tubing make this unit fully resistant to common organic solvents. Flanged reservoir connection eliminates joint freeze Greaseless joint between the solvent cup and glass reservoir eliminates possibility of contamination. Complete disassembly without tools for easy cleaning. Hands free during washing/drying cycle. Calibrated length mark for 4”, 7”, 8” and 9” tube.

WG-1209-1 Specifications

• Description:Multi-tube washer/Dryer Complete
• Joint Type:#9 Silicone Stopper (Top Diameter: 45mm, Bottom Diameter: 37mm, Length: 25mm)
