Gas Separation(N2 Separator)

판매가격 4,300,000 원
카탈로그 NO. NS-16
제조사/원산지 /
제품사양 정보 - Size : 140mmφ × (550mmL)
- Inspection
(at air pressure : 7bar, Air Temperature : 25℃)
>> Yield of 95% Nitrogen ≥ 16 SLM
>> Yield of 97% Nitrogen ≥ 10 SLM
- Maximum Feed Air Pressure : 8.5bar
- Feed Air Temperature : 10 ~ 35℃

카탈로그 다운로드

Order Information

Catalog No. Description 브랜드 단위 소비자가 추가
Catalog No.NS-16 DescriptionYield of 95% Nitrogen ≥ 16 SLM 브랜드 단위 소비자가4,300,000원

선택한 항목

Catalog No. Description 소비자가
총 합계 금액 0원


 - Size : 140mmφ × (550mmL)

 - Inspection

  (at air pressure : 7bar, Air Temperature : 25℃)

  >> Yield of 95% Nitrogen  ≥ 16 SLM

  >> Yield of 97% Nitrogen  ≥ 10 SLM

 - Maximum Feed Air Pressure : 8.5bar

 - Feed Air Temperature : 10 ~ 35℃

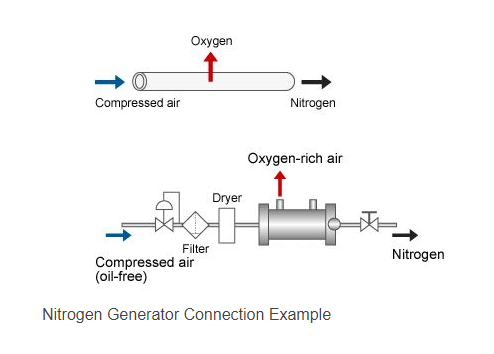

• Gas Separation Principle

Components are separated using the difference in transmission rate for each gas. Oxygen permeates through DIC's hollow fiber membrane four times more easily than nitrogen, so when compressed air is sent through the inside of the hollow fibers, the air that permeates through the hollow fiber wall is rich in oxygen, and the air that remains is rich in nitrogen
