Saphire NMR Tubes

판매가격 1,675,200 원
카탈로그 NO. FAMILY-66564
제조사/원산지 Wilmad-LabGlass /
제품사양 정보

카탈로그 다운로드

SP Wilmad-LabGlass NMR Consumable and Accessories.pdf
다운로드

Order Information

Catalog No. Description 브랜드 단위 소비자가 추가
Catalog No.WG-507-7 Description5 mm Sapphire NMR Tube, 7" L 브랜드Wilmad 단위1 EA 소비자가1,675,200원
Catalog No.WG-508-7 Description10 mm Sapphire NMR Tube, 7" L 브랜드Wilmad 단위1 EA 소비자가1,819,600원

선택한 항목

Catalog No. Description 소비자가
총 합계 금액 0원
구매하기
장바구니
찜하기

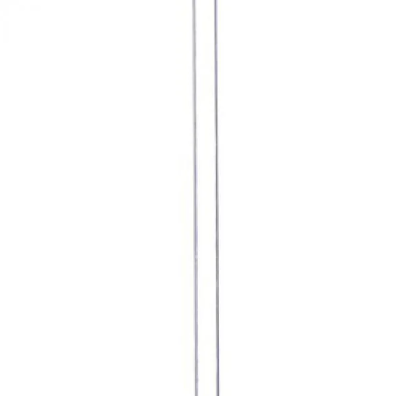

Saphire NMR Tubes

Sapphire (Al2O3 single crystal) has extraordinary hardness and high melting temperature around 2000°C. Due to its single crystal structure, it has outstanding chemical resistance to corrosive solvents, including HF acid. These unique properties plus the zero background in most NMR experiments make it popular in the following applications: •    High Pressure NMR up to 400 bar, tube only, no flange supplied •    19F studies, especially studies with HF acid involved •    29Si studies Wilmad sapphire tubes have guaranteed straightness for optimized shimming quality and are tested in spinner turbines for OD fitting. Wilmad recommends using epoxy glue if connecting to a metal gas line.




WG-507-7 Specifications

  • OD (mm) :4.92 ± 0.05
  • ID (mm) :3.4 ± 0.1
  • Length (mm) :178
  • Material (mm) :Sapphire


WG-508-7 Specifications

  • OD (mm) :9.92 ± 0.05
  • ID (mm) :8.0 ± 0.1
  • Length (mm) :178
  • Material :Sapphire
