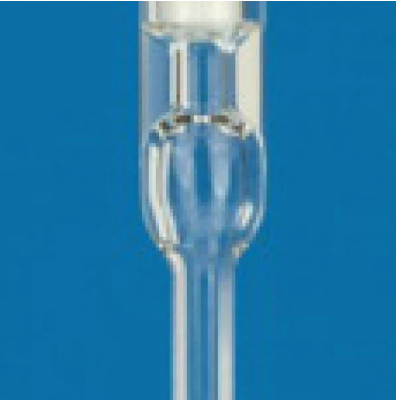

Quick Pressure Valve (QPV) 5 mm OD NMR Sample Tubes
Wilmad Quick Pressure Valve Sample Tubes are specially designed to simplify the work of NMR/EPR studies for catalysis, gas-liquid phase reactions, air sensitive samples and elevated temperature studies using low boiling point solvents. Due to the nature of glass, Extreme Caution should be exercised when using at elevated or reduced pressures as performance of tubes under pressure or vacuum cannot be guaranteed. Adequate safety shielding should always be used when working in these conditions.. Wilmad Quick Pressure Valve Sample Tube Instruction The upper portion of the Quick Pressure Valve (QPV) is ready to accept 1/16” PTFE tubing. To make a connection, unscrew the top nut and ferrule from the top threaded port, and slide them onto the 1/16″ tubing. Please make sure that the end of the tubing extends past the end of the ferrule. Screw the assembly back until its finger tight. The Quick Pressure Valve could also be connected to 1/8″ tubing through optional adapters. The following picture depicts the basic connection to 1/16″ tubing and optional connection to 1/8″ tubing: If connecting the QPV valve to an existing glass vacuum manifold through a rubber hose is needed, please refer to the picture below for parts: After assembly
507-QPV-7 Specifications
- MHz Rating:300
- O.D. (mm):5
- Length (inch):7
- Wall Thickness (mm):0.38
- Concentricity/ Camber (microns):51/25
- Recommended Max Pressure (psi):100
522-QPV-7 Specifications
- MHz Rating:300
- O.D. (mm):5
- Length (inch):7
- Wall Thickness (mm):1.40
- Concentricity/ Camber (microns):51/51
- Recommended Max Pressure (psi):200
522-QPV-8 Specifications
- MHz Rating:300
- O.D. (mm):5
- Length (inch):8
- Wall Thickness (mm):1.40
- Concentricity/ Camber (microns):51/51
- Recommended Max Pressure (psi):200
524-QPV-7 Specifications
- MHz Rating:300
- O.D. (mm):5
- Length (inch):7
- Wall Thickness (mm):0.77
- Concentricity/ Camber (microns):76/51
- Recommended Max Pressure (psi):150
528-QPV-7 Specifications
- MHz Rating:500
- O.D. (mm):5
- Length (inch):7
- Wall Thickness (mm):0.38
- Concentricity/ Camber (microns):25/13
- Recommended Max Pressure (psi):100
528-QPV-8 Specifications
- MHz Rating:500
- O.D. (mm):5
- Length (inch):8
- Wall Thickness (mm):0.38
- Concentricity/ Camber (microns):25/13
- Recommended Max Pressure (psi):100
Application Notes
CLICK HERE TO SEE THE PRODUCT INSTRUCTIONS FOR THE QUICK PRESSURE VALVE TUBE
