5mm Micro Cell Assembly (use with small sample sizes in thin wall tube)

판매가격 68,600 원
카탈로그 NO. FAMILY-1381-1561-402
제조사/원산지 Wilmad-LabGlass /
제품사양 정보

카탈로그 다운로드

SP Wilmad-LabGlass NMR Consumable and Accessories.pdf
다운로드

Order Information

Catalog No. Description 브랜드 단위 소비자가 추가
Catalog No.529-B DescriptionPTFE Holder 브랜드Wilmad 단위1 EA 소비자가99,100원
Catalog No.529-C Description3 mm Kel-F Positioning Rod 브랜드Wilmad 단위1 EA 소비자가68,600원

선택한 항목

Catalog No. Description 소비자가
총 합계 금액 0원
구매하기
장바구니
찜하기



5mm Micro Cell Assembly (use with small sample sizes in thin wall tube)

•Sample volume can be as little as 18 µL.•3 different inserts with various shapes (Spherical Bulb, Capillary Tube and Cylindrical Bulb)•Outer tube (Precision Thin Walled) must be ordered separately depending on magnetic field strength.•Not recommended for variable temperature experiments.•Use our PTFE Needles (#90630) with syringes to fill and clean sample.



529-B Specifications

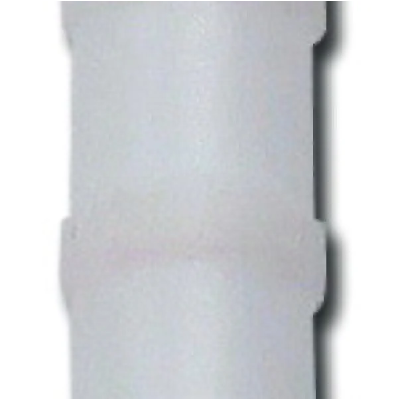

  • Description:PTFE Holder for 5 mm Thin Wall NMR Tube
  • Height (mm):25
  • Use with:529-C Kel-f Rod, or WG-504 Stainless Steel Rod
  • Bottom Hole ID (mm):1.5

529-C Specifications

  • Bottom Length (mm):Positioning Rod
  • Compatible with:529-B adapter, Vortex Plugs WG-805C and under



Application Notes

Cylindrical microcells can be customized in lengths to match your probe Note: Positioning rod should be removed prior to recording the spectrum. Technical Tip: To improve the shimming quality and signal lock, surround the microcell with reference solvent to reduce the susceptibility differences between the inner and outer compartments of the assembly. Resonance Report: For detailed explanations of the application of Coaxial Inserts and Microsampling see Resonance Report NMR-007 and NMR-008
